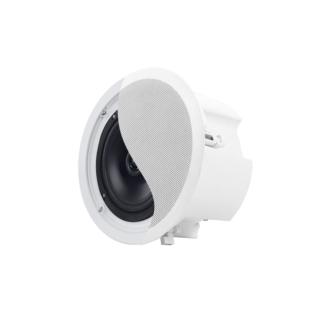

CSL 6560B

100V - 60W ceiling speaker

Available Barcode : 8015439065607
Product By: Brand
Two-way ceiling speaker with a particular back cover, protecting it from dust or foreign bodies and offering an excellent sound amplification, thanks to the resonance effect. The internal transformer allows to use it in 100V systems, with a power of 60W. It is endowed with spring terminals for fast connection of the wires. It mounts a 6,5" woofer and 1" tweeter.



Features:
Max power 60
Mount hole diameter 20,5 cm
Tweeter Dimensions 1"
Woofer dimension 6,5" (16,3cm)
Transformer Internal trasformer for 100V use
Frequency response 90 Hz - 18 KHz
Sensitivity 92dB
Kind of speaker Passive
Material Plastic (ABS)
Opearting voltage 100V
RMS power 30W
Color White
Weight 2,4
Product dimensions 240 x 240 x145 mm
Notes Mounting hole: 20,5 cm
